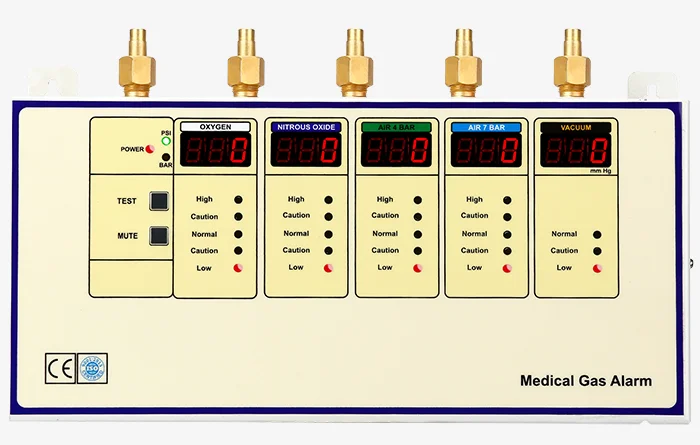

Medical Gas Alarm

These Medical Gas Alarms are made to provide the master and area alarm signals. These Medical Gas Alarms are made on the LCD touch display which makes it possible for the customer to do programming of alarms.

Enquire Now

Technical Specification
Description

Specification :
Display Type: Digital
Operating Temperature: 10 Degree C
Brand: Digiline Systems
Power: 50 Watts
Power Supply: 230VAC
Frequency: 50Hz
Operating Humidity: 90% RH
Gases To Monitor: Oxygen, Nitrous, Air 4, Air 7, Vacuum
Communication: Master Gas Alarm
Indication: Red Led For High/Low, Yellow For Caution, Green For Normal. Separate Led Indication For PSI And Bar.
Accuracy: +-0.25% Full Scale Span
Gas Pipe Connection: 3/8""Nut And Nipple
Model Number: Grey
Dimension: 265L x 125B x 85H in mm
