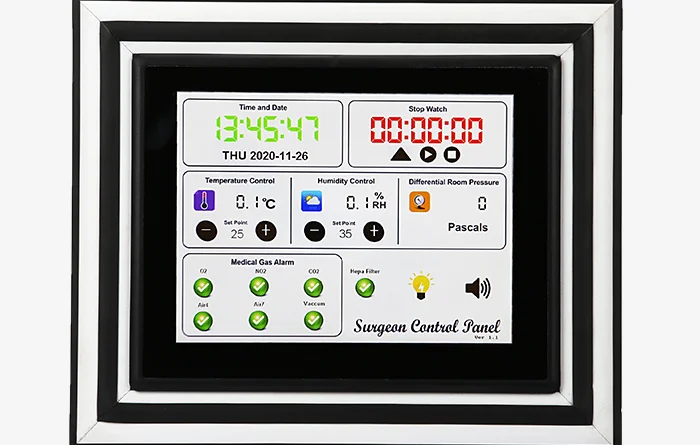

Touch Screen Surgeon Control Panel

With the Touch Screen Sensitive Monitor (which can be operated directly at the touch of a finger), operating and monitoring of technical equipment in medical locations and other areas could not be simpler. The graphical interface is capable of displaying all kinds of complex topologies. The status and command information/follow-up action information is presented in a manner that is well-structured and clear.





Specification :
Screen Size: 22inches
Model Name/Number: TSCP-VX
Voltage: AC 100-240V
Frequency: 50/60 Hz
Operating System: Windows
Power Consumption: 100 watts
Display Type: Led
Brand: Digiline
Resolution: 1920x1080 Pixel HD
Brightness: 450 cd/m2 min.
Contrast: 1000:1
Viewing Angle: Horizontal
Number of Colors: 16.2 Million
Response Time: 25 ms
Booting Time: 30 - 35 Seconds
Software Version: VX 3.0
CPU: Intel Celeron 2.4 Ghz
RAM: 2 GB
Storage: 60 GB SSD
Graphic: VGA, HDMI
Interfaces: 4xUSB, 2xSerial, 1xLan
Panel Weight: 15 Kg
Wall Insert Box Cut Out: 615 x 425 x 130 mm
